Dr. Marc Dupuis
GéniSim Inc.
3111 rue Alger, Jonquière, QC, G7S 2M9


The mix convection air circulation pattern inside an aluminium smelter "potroom" building is rather hard to reproduce in a mathematical model. As it was demonstrated previously [1], only the use of a differential Reynolds flux turbulence model available in the CFX-4 commercial code led to the accurate reproduction of the 2D flow pattern observed in a small physical model.

As the ventilation pattern in a modern smelter "potroom" building is truly 3 dimensional in nature, the next logical step was to develop a 3D ventilation model to be able to carry out industrial applications. As before, the model was developed using the CFX-4 commercial code in order to use the differential Reynolds flux turbulence model that in 3D requires the solution of 10 partial differential equations.


The proper ventilation of aluminium smelter "potroom" buildings is important for two main reasons:

1) as each pot dissipates a huge amount of heat (up to 600 kW for modern pots), the potshell must be well ventilated to prevent it from becoming too hot and to avoid its excessive deformation under thermal loading;
2) as the temperature at the floor level is a key element of the working conditions, the potroom design must ensure that enough fresh air is circulating at that level.

For those reasons, the proper design of the building is an important aspect of a smelter technology [2]. Nowadays, one would hopes that it would

be relatively straightforward to use CDF mathematical tools to study the ventilation pattern inside a proposed building design and utilize that tool to come up with the optimal design. Unfortunately, early works have demonstrated that it is not that easy to reproduce in a CFD mathematical model the observed turbulent mix convection flow pattern [3,4].

Yet, it was demonstrated in 1993 [1], that the observed 2D flow pattern could be well reproduced if a differential Reynolds flux turbulence model is used (see Figure 1). Such a turbulence model was available at the time in the commercial code FLOW3D from Harwell Lab.

As the flow pattern in modern smelter buildings is truly tridimensional in nature [5], the present work presents the development of a 3D ventilation model of a modern potroom configuration based on the same commercial code now called CFX-4 and distributed by AEA.

Obviously, that new model will also rely on the use of the differential Reynolds flux turbulence model that in 3D requires the solution of 10 partial differential equations (hh, hu, hv, hw, uu, uv, uw, vv, vw, ww).


Modern smelter buildings are more than 25 m wide, around 15 m high (excluding the basement) and can be up to 1 km long (see Figure 2). Such a building can shelter up to 100 pots aligned side by side, each being close to 14 m long and 4 m wide.

Only the top part of the pots (called the superstructure) stands above the building floor. The hotter bottom part (called the potshell) is located in the building basement.

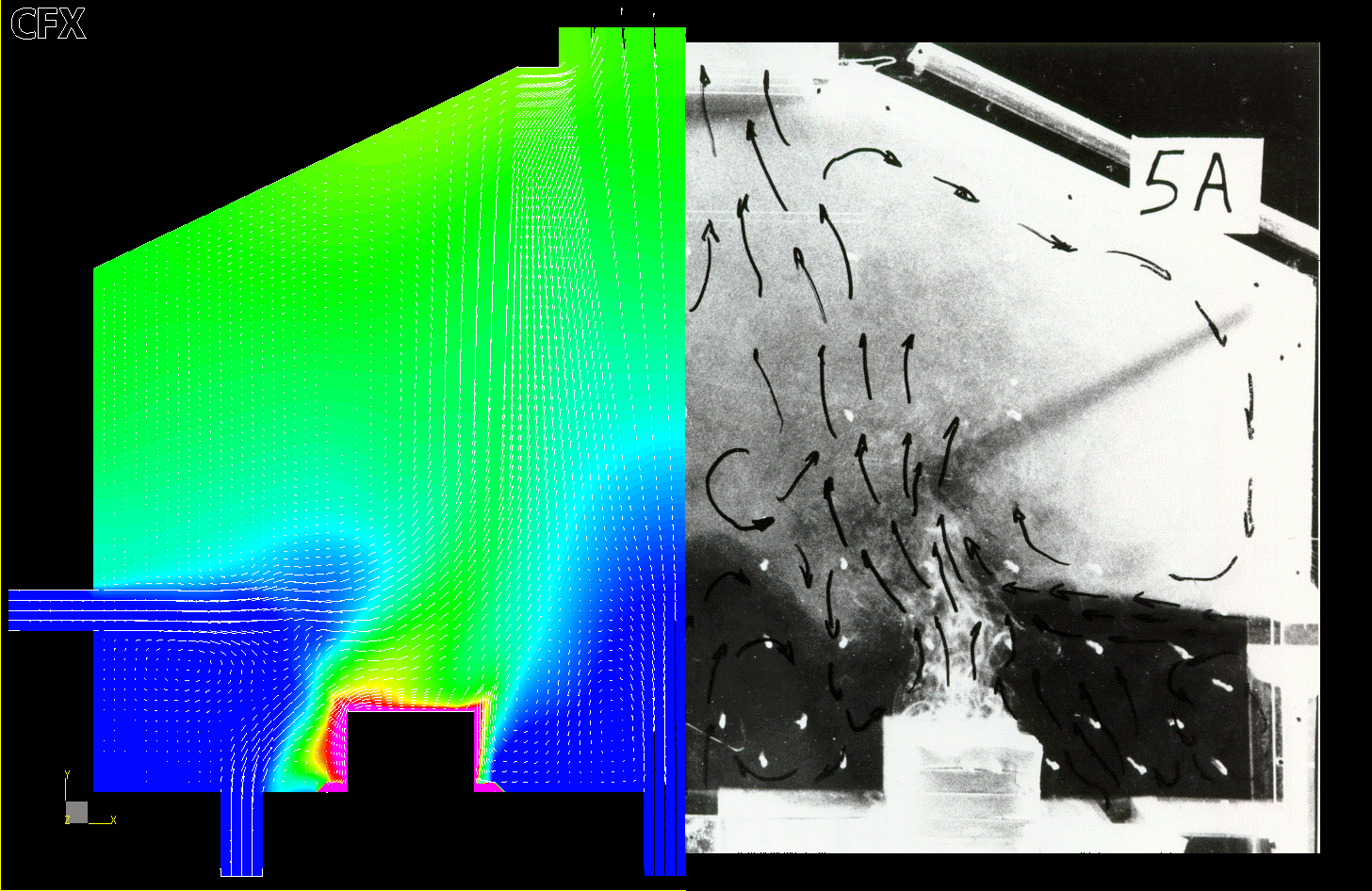

Figure 1: Model results vs experimental flow, 2D case

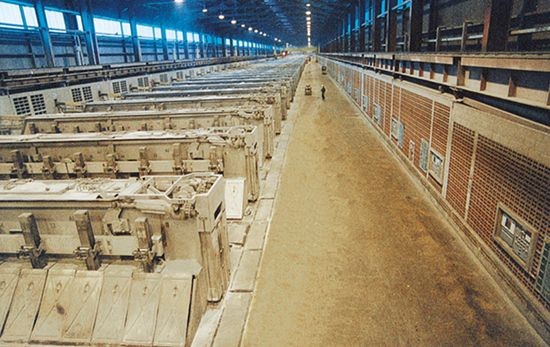

Figure 2: Modern smelter "potroom" building configuration

Each pot dissipates around 600 kW of heat, of which 70 to 80% has to be in turn dissipated by the building, the rest being captured by the gas scrubber system.

The potroom ventilation pattern is driven by mix convection. Roof ventilators ensure the main "flow through" air circulation. All the fresh air is coming in the building by wall inlets located at the basement level.

Fresh air in the basement can travel up in the potroom either by the lower section of the potroom side walls, which are porous, or by grids in the floor located around each pot.

In addition to the main "flow through" air circulation, there is a secondary flow driven by natural convection above the pots. As this secondary flow cannot escape out at the roof exit, it forms a recirculating flow in the roof section of the potroom.


Contrary to older technology where the pots were aligned end to end, the modern side by side arrangement generates a truly tridimensional flow pattern. This means that, in the best conditions away from the end of the building where repetitive symmetry cannot be assumed, the model depth can be reduced to the half distance between two successive pots (see Figure 3).

For the presented mesh density, the model is made of 163,590 finite volumes. As the differential Reynolds flux turbulence model is being used, there are a total of 15 partial differential equations that needs to be solved at each node.

As the model is not converging with the default setting, the temperature has to be underrelaxed to ensure smooth convergence. For that reason, the model required around 800 iterations to converge. Since each iteration requires 22 CPU seconds on a PIII 800 mHz computer, the total convergence required 4.9 CPU hours.


The model results demonstrate that the building design is very efficient to address the two main objectives since the flow pattern ensures that both the pots and the floor working area are well ventilated:

1) fresh air from the basement is flowing around the pot and the warmed up air is raising above the pot toward the roof;
2) fresh air from the basement is flowing out of the porous potroom walls and flows toward the pot maintaining the floor working area in good working conditions;
3) the natural convection recirculation loops are prevented to flow down to the floor level by the step reduction of the potroom width at the crane rails level and by the inlets of fresh air from the porous walls below that step width reduction.

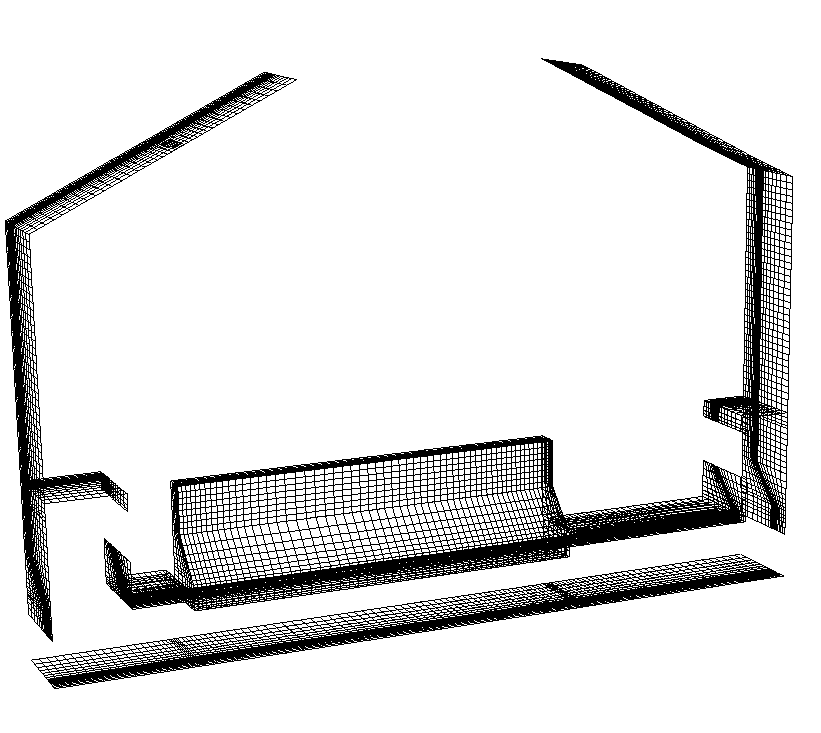

Figure 3: Model mesh at solid boundaries

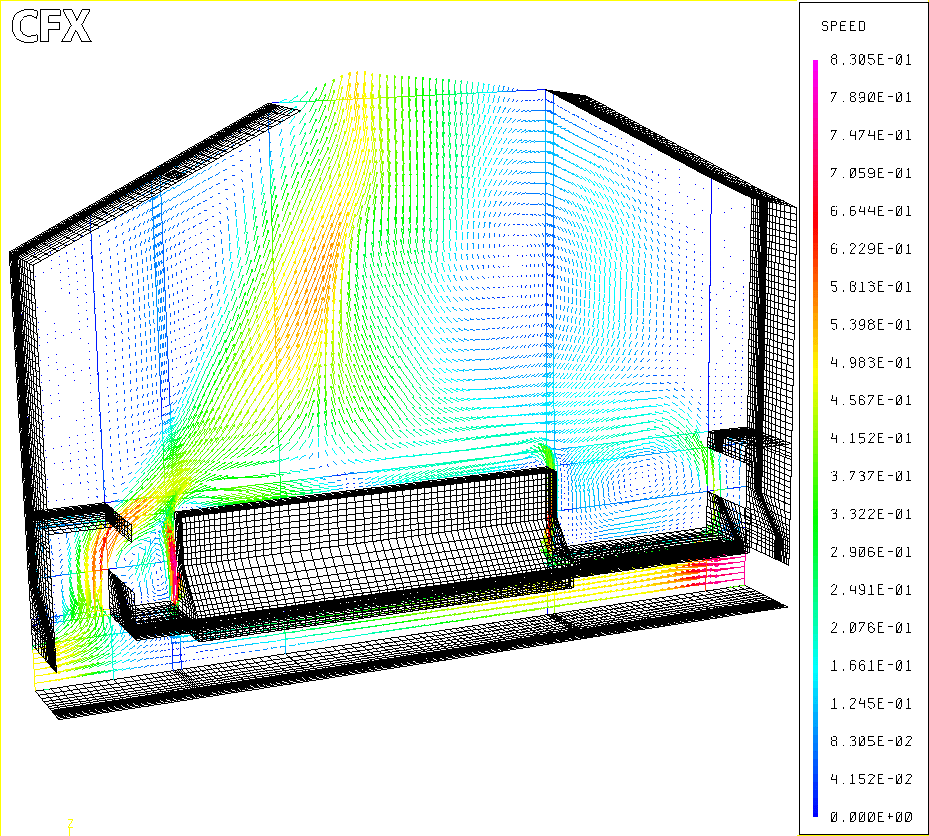

Figure 4: Velocity vector plot, back plane

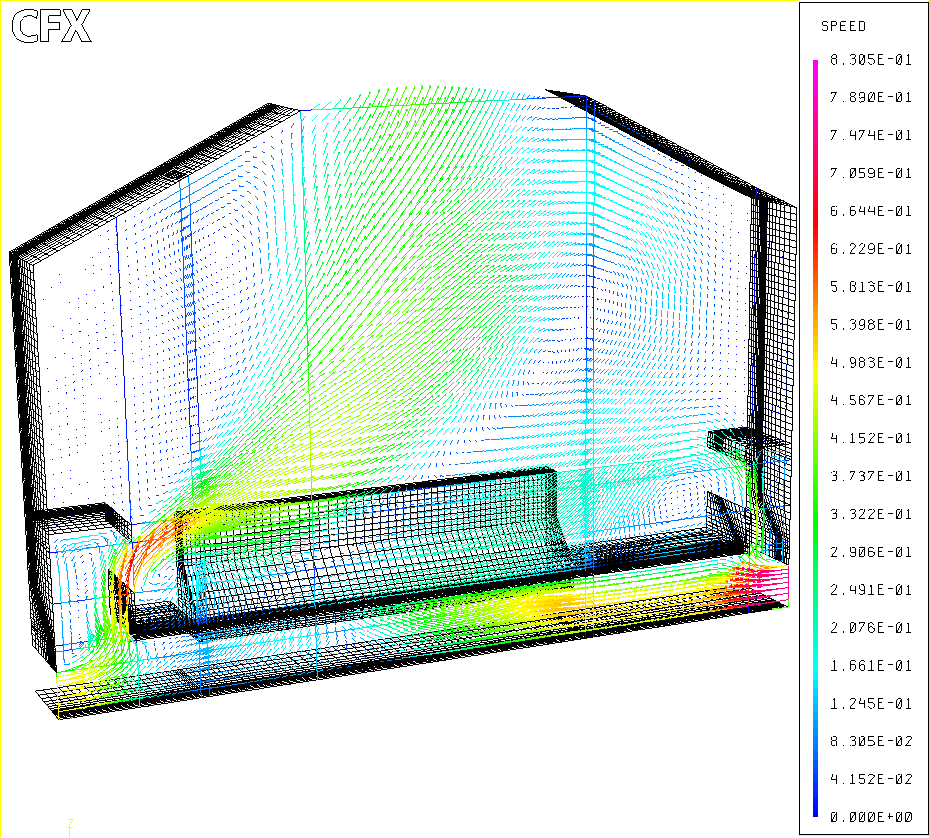

Figure 5: Velocity vector plot, front plane

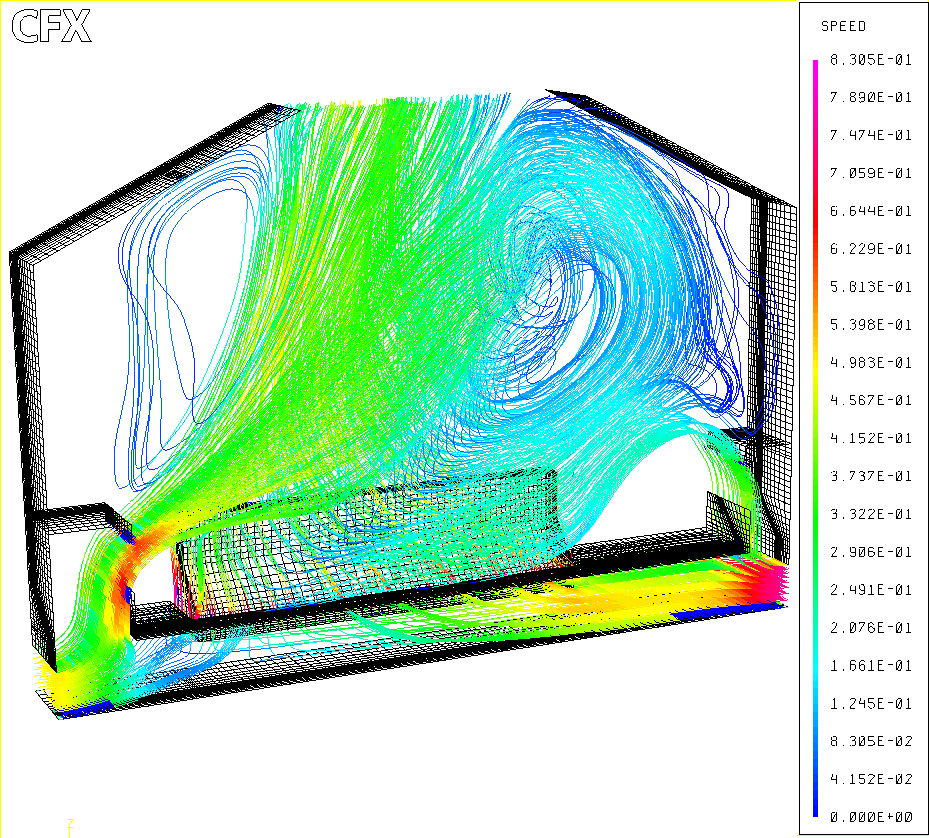

Figure 6: Streak lines

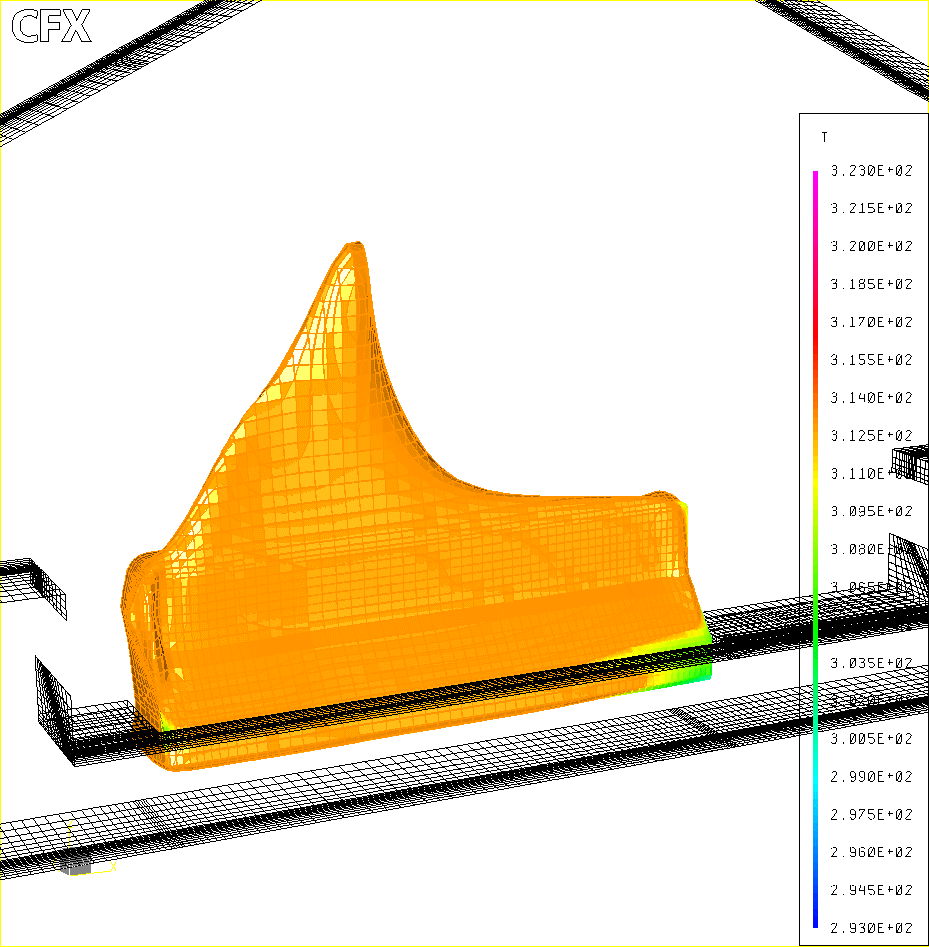

Figure 7: Isosurface at constant temperature

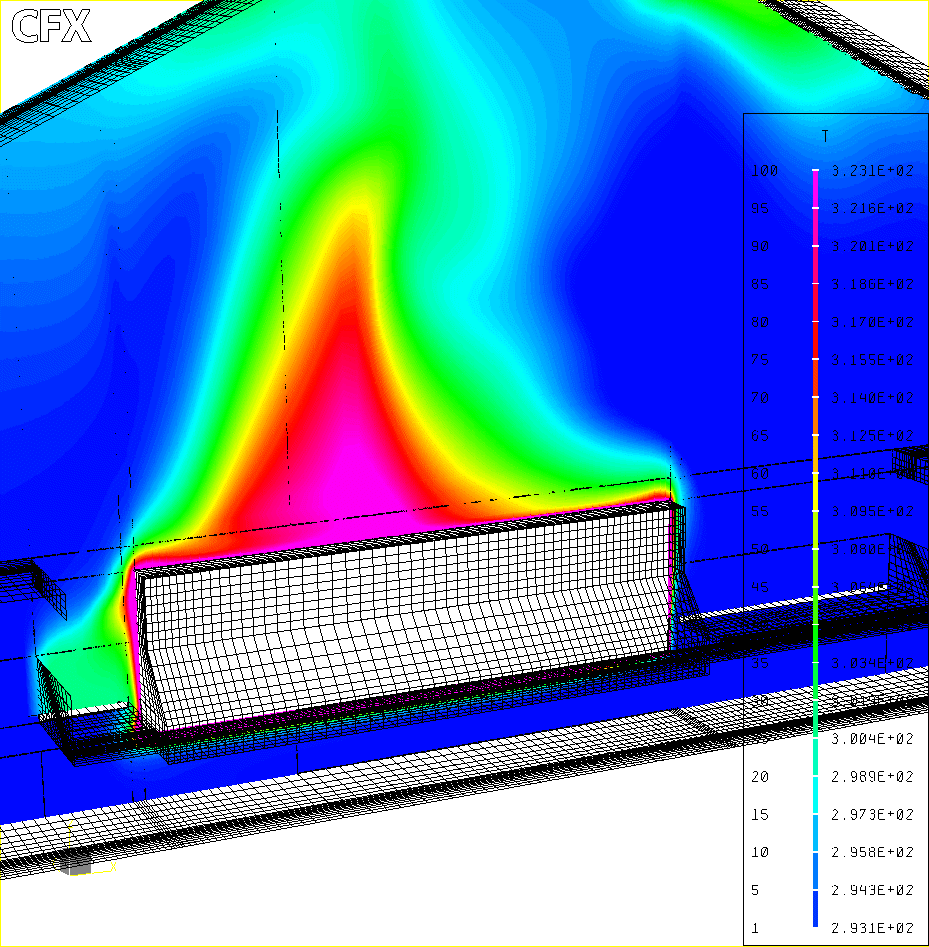

Figure 8: Fringe plot, temperature

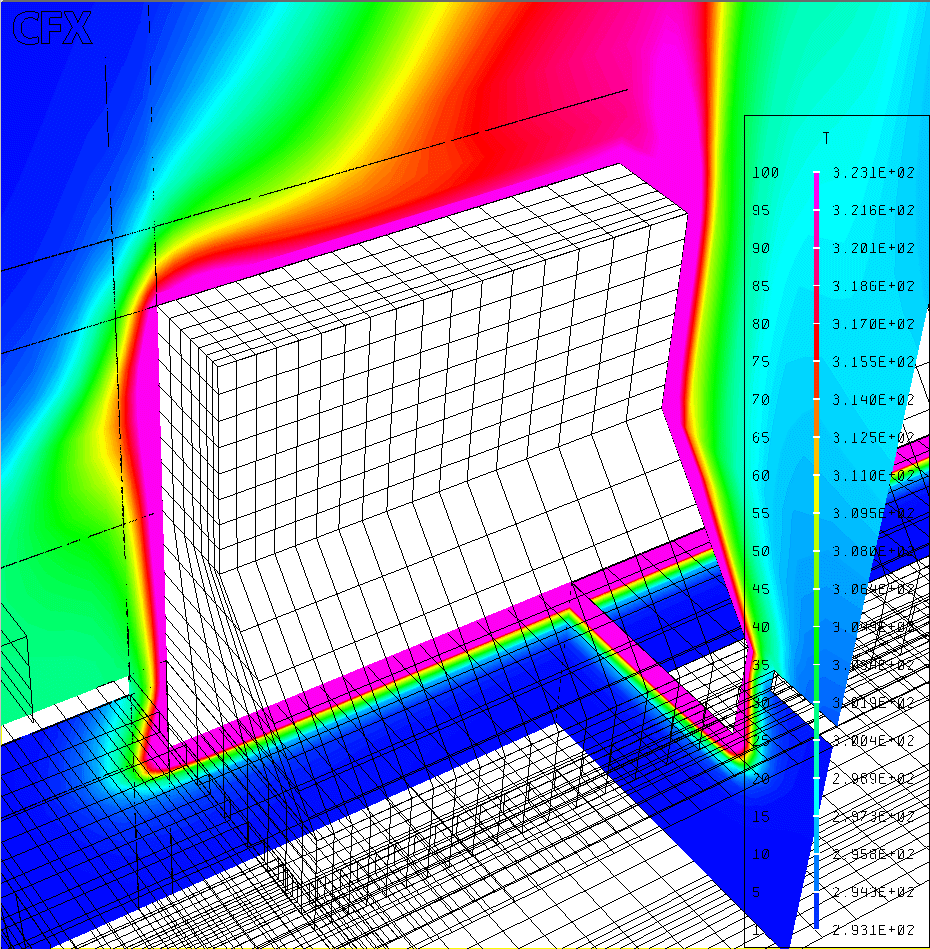

Figure 9: Fringe plot, temperature


A full 3D ventilation model of a modern potroom design has been successfully developed using the CFX-4 code from AEA. The model relies on the differential Reynolds flux turbulence model to be able to reproduce correctly the turbulent mix convection ventilation pattern.

The model is converging to the steady state conditions in around 5 CPU hours on a 800 mHz PIII computer despite the fact that 15 partial differential equations need to be solved and that the temperature has to be underrelax to ensure smooth convergence.

Models results confirm the efficiency of the modern potroom design to maintain both the pots and the floor working area well ventilated.


  1. M. Dupuis, E. Dernedde and D.S. Clarke, "Turbulence modeling of air circulation in an enclosure with multiple openings and local heat sources", CIM Light Metals, p. 229-236, 1993.

  2. C. Vanvoren and al., "AP 50: The Pechiney 500 kA cell", TMS Light Metals, p. 221-226, 2001.

  3. M. Dupuis, J.C. Méthot and E. Dernedde, "Simulation mathématique de la circulation de l'air dans une enceinte avec ouvertures et sources chaudes localisées", Can J. Chem. Eng., 63, p. 155-161, 1985.

  4. M. Dupuis, E. Dernedde and J.C. Méthot, "La modélisation de la turbulence dans une enceinte avec ouvertures et sources chaude localisées", Can J. Chem. Eng., 67, p 713-721, 1989.

  5. J. Bos and al., "Numerical simulation, tools to design and optimize smelting technology", TMS Light Metals, p. 393-401, 1998.
