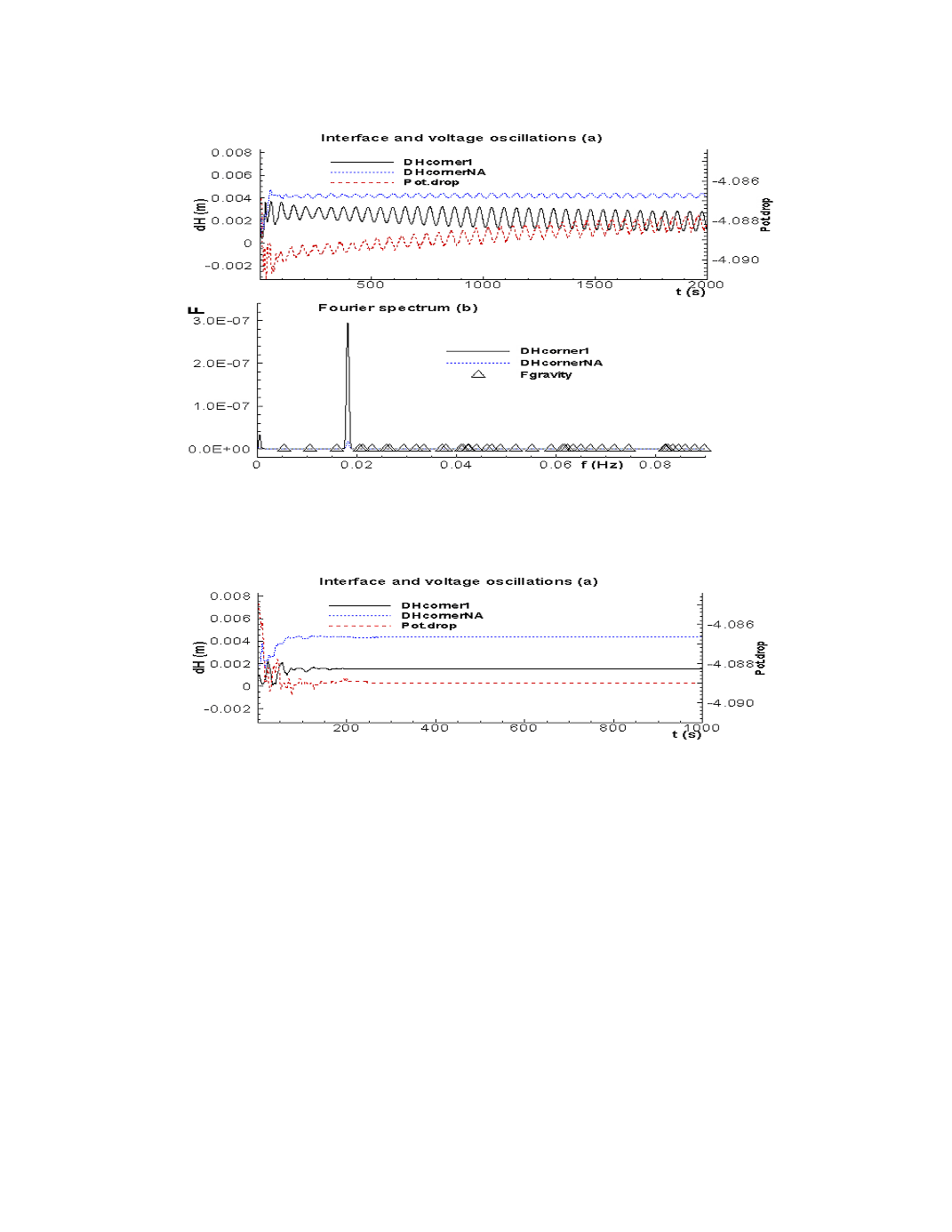

Figure 15 ­ (a) Liquid metal pad and cell voltage oscillations for the case with selective
collector rodding; (b) Fourier power spectra for the pad oscillations


Figure 16 ­ Liquid metal pad and cell voltage oscillations for the case with selective
collector rodding when the cell is located in the middle of the line

CONCLUSIONS

The MHD stability modelling for the experimental high amperage 500 kA cells
indicates that the selective collector bar rodding can be useful for reducing the cell noise and
increasing the stability. The effect may be particularly useful for the end of line cells where
the stability is often compromised.
