disconnected  cathode  bars,  various  branching  of  the  current  path
between the cells, etc.
The  development  of  the  program  is  based  on  the  previous
experience  in  the  current  simulation  programs:  NEWBUS  [1],
reports  from  Reynolds  Metals  Company,  and  Russian  program
TOK  from  the  VAMI  institute.  Current  distribution  in  a  busbar
network  can  be  described  to  a  reasonable  approximation  accuracy
suitable for engineering purposes by linear resistance elements. The
electric currents and voltages in such a circuit are governed by the
Kirchhoff laws:
1)  the  voltage  law:  The  algebraic  sum  of  the  potential  differences
taken around a loop (or 'mesh') of a circuit is zero;
2)  the  current  law:  The algebraic sum of the currents into a node
of a circuit is zero.
Directly applied, these laws contain unknown potential differences
for each resistance and unknown currents for each mesh of a given
circuit.  There  are  two  methods  to  reduce  the  number  of
independent  unknowns  and  the  equations  respectively.  These  are
based on combining the two laws and are referred to as either mesh
analysis  or  nodal  analysis.  The  mesh  analysis  is  based  on currents
as unknowns. A set of mesh currents
I
n
 are chosen to traverse all
complete  loops  of  the  circuit.  Since  each  mesh current flows right
through  any  junction  (node)  in  its  path,  the  current  law  is
automatically  satisfied.  Then  it  is  left  to  apply  the  voltage  law  for
each  of  the  meshes  by  replacing  the  potential  differences  with  the
algebraic  sums  of  currents  through  the  particular  resistance
multiplied by this resistance (Ohms law).
For  the  reduction  cell  situation  this  procedure  was  used  in  the
previously  referenced  programs  and  involves  a  tedious  job  of
locating  all  possible  meshes  of  the  circuit  that  is  rather  hard  to
automate in a computer program. Therefore this approach involves
an intelligent input from the program user and results in long labor
days with a possibility of potential errors. Principal changes in the
circuit,  such  as  anode  or  cathode  element  disconnection  or  new
branching, require significant reconsideration of the equation set.
For  the  automatic  circuit  analysis  purposes  the  nodal  analysis  is
found  to  be  more  convenient.  According  to  this  method  the
potentials  at  the  nodes  are  the  independent  unknowns.  The  use  of
node  potentials  rather  than  mesh  currents  makes  for  greater
efficiency in the analysis of circuits that are predominantly parallel
in character, since the number of simultaneous equations that have

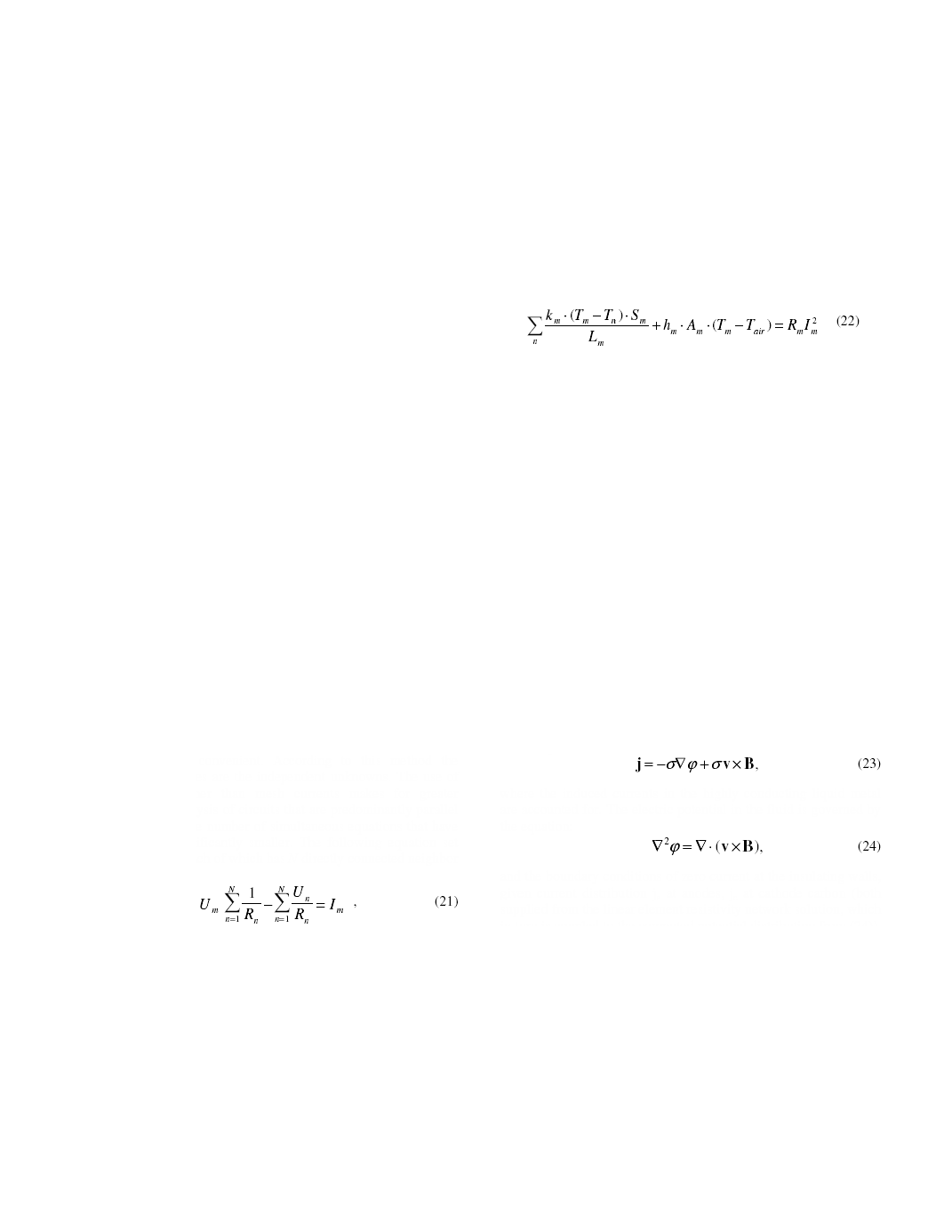

to  be  solved  is  significantly  smaller.  The  following  equation  set
arises for M nodes each of which has N directly connected neighbor
resistances:
where
U
m
 is potential at a node,
U
n
 - for nodes at other ends of
neighbor  bars,
R
n
  -  resistances  of  neighbor  bars,
I
m
    -  external
current  entering  the  node.  In  our  case  total  current  'I'  enters  the
reference nodes in the liquid metal of previous cell and '-I' current
leaves the nodes at the liquid metal of the downstream cell. For all
other  nodes  the  external  current  -  right  side  of  the  equation  -  is
zero.  This  is  just  another  statement  of  the  current  law,  and  the
voltage law is satisfied because the sum of the potential differences,
with
U
m
 expressed from (21), over the closed mesh is identically
zero.  Formally  this  law  can  be  applied  even  for  two  resistances
connected  in  series,  and  this  property  is  essential  in  order  to
generate automatically the set of equations to solve.
    After  finding  the  potentials  at  nodes,  the  potential  difference
between  two  neighbor  nodes  multiplied  by  the  connecting
resistance gives the current in each resistance. The main task of the
present  program  is  to  find  the  current  distribution  in  the  bar
network, yet a further improvement in accuracy can be achieved if
computing  Joule  heating:


2
m
m
I
R    ·
for  each  of  the  resistance
elements.
      Knowing  the  Joule  heating,  it  is  possible  to  estimate  the
temperature of a bar. For this purpose we integrate the temperature
T
equation  over  a  single  bar  volume  and  an  equation  set  for  the
discrete variables yields:

Where  k
m
  is  conductivity  of  the  m-th  bar,  summation  is  over  n
neighbor  bars,  S
m
  is  the  cross  section  area,  L
m
 - length,  h
m
  from
(15).  When  the  temperatures  are  calculated,  the  resistances  R   (T)
m

can  be  updated  taking  into  account  the  linear  temperature
dependence  (4).  This  set  can  also  be  solved  by  linear  algebra
solvers, e.g., from the package LAPACK.
After  this  new  resistances  are  calculated  and  the  electric  circuit
equation  set  solved  again  to  iterate  the  whole  procedure  while  the
convergence is achieved. The convergence is easily established for
bars  with  reasonable  cross  sections  and  sufficiently  effective  heat
transfer to the ambient air and to the neighbor bars. We incorporate
in  the  program  also  the  heating  at  the  ends  of  first  and  last  bars
connected  to  the  anodes  and  the  cathode  carbon  by  assigning  the
user defined temperatures at these ends.
The first calculation step needed for an MHD model is the electric
current  distribution  in  the  busbars.  This is calculated by coupling
the  electric  current  in  the  fluid  zone  to  the  resistance  network
representing  the  elements  division  of  individual  anodes  and
cathode collector bars as well as the whole busbar circuit between
two  adjacent  cells.  The  electric  current  in  the  fluid  zones  must  be
computed  from  the  continuous  media  equations  governing the DC
current  (which  can  change  in  time  with  the  waves  and  anode
burnout process):
where  the  induced  currents  in  the  highly  conducting  liquid  metal
are accounted for. The electric potential in the fluid is governed by
the equation:
and the boundary conditions of zero current at the insulating walls,
given  current  distribution  j
a
  at  anodes,  j
c
  at  cathode  carbon  (both
supplied from the linear element resistivity network solution, which
in turn is coupled to the computed potential distribution from (24)).
At  the  interface  between  the  liquid  metal  and  the  electrolyte  the
continuity  of  the  potential  and  the  electric  current  normal
component must be satisfied.
As  the  first  step  toward  the  solution  of  the  cell  MHD  stability,
MHD-Valdis  uses  the  versatile  1D  line  element  busbar  network
generator  called BUSNET to create the 1D busbar mesh reading a
very  compact  user  input  file.  Then  in  a  few  seconds,  it  solves  the
non-linear  problem  and  generates  a  TECPLOT  [13]  compatible
output  file  and  a  standard  printout  ASCII  output  file  called
BARSOUT.
For the present example, the MHD-Valdis BUSNET user input file
reproduces  exactly  the  same  busbar  geometry  as  the  second  1D
